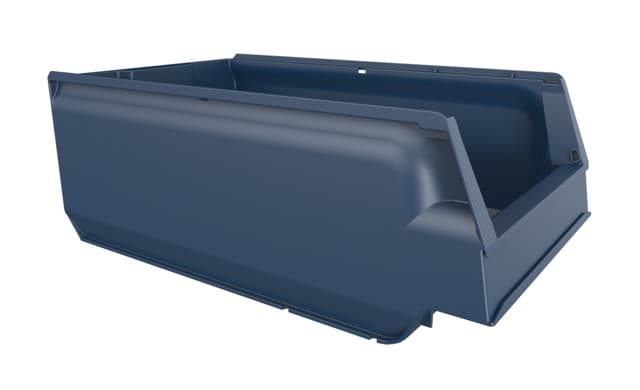

9068005 - System 9000 Modular Bin 400x230x150

9068005 - System 9000 Modular Bin 400x230x150

The System 9000 is a modular flexible system: our modular bins are available with an internal depth of 300, 400, 500 and 600mm. Modular bins include open front crates that can either stand on a shelf or be put in carousel systems. Storage and easy access to all kinds of parts, tools and accessories. Ideal for assembly lines, aftersales, and maintenance services. All kinds of accessories are available such as width and lengthwise dividers, labels, etc.

More details

Benefits


  • Open front design
  • Suitable for stacking
  • Optional dividers
  • Easy identification
  • Optional long side dividers
  • Translucent material - optimized visibility

Product specifications

Product reference 9068005
External max length (L) 400 mm
External max width (W) 230 mm
External max height (H) 150 mm
Internal min Length (Li) 304.5 mm
Internal min Width (Wi) 207 mm
Individual Load Capacity 15 kg
Incremental stack height (Ha) 144.3 mm
Usable Volume 11 L
Net weight kg 0.615 kg
Operational Temperature Range -10 °C - 40 °C
