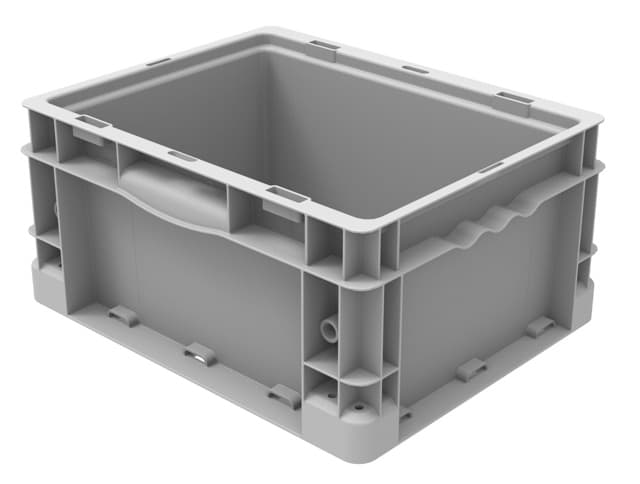

8012029 - Interstack 381x304.8x190 - Reinforced base

8012029 - Interstack 381x304.8x190 - Reinforced base

Schoeller Allibert's Interstack range is specially designed to meet the requirements of the U.S. market. Fully automation-friendly thanks to its design with the top rim pick-up holes and the bosses for automation. The optional Click Booster enables a modular use of the crate and gives it a height increase of 10mm. Available in 3 different footprints, each in 3 different heights in either a solid base version or reinforced base version.

More details

Benefits


  • Easy to clean
  • Reinforced base suitable for mixed stacking
  • Designed to be compatible with AIAG 48x45inch pallet
  • Automation Friendly
  • Easy to handle
  • Easy identification
  • Textured sides for label placards

Product specifications

Product reference 8012029
External max length (L) 381 mm
External max width (W) 304.8 mm
External max height (H) 190.5 mm
Internal min Length (Li) 330.6 mm
Internal min Width (Wi) 239.2 mm
Individual Load Capacity 18 kg
Max Dynamic Load on Bottom Container in a Stack 410 kg
Incremental stack height (Ha) 177.8 mm
Usable Volume 12.9 L
Net weight kg 1.196 kg
Operational Temperature Range -20 °C - 45 °C
